ABB AX25-30-10-81 is a high-performance modular AC contactor belonging to ABB's AX series. It is specially designed for frequent start-stop operations and is suitable for motor control, lighting systems, heating equipment and various industrial automation applications. The AX25-30-10-81 offers outstanding performance and reliability, and is widely used in modern smart factories, building automation and energy management systems. This model supports 3-pole main contacts + no auxiliary contacts, with a rated working current of 25A (AC-3 category) and a coil voltage of AC24V (the model suffix "81" indicates AC24V control coil). It is an ideal choice for low-voltage distribution and control systems.

Installation and Usage instructions

Insert the contactor into the standard 35mm DIN rail and ensure that the snap is fully locked.
Main circuit wiring: L1/L2/L3 is connected to the power supply, and T1/T2/T3 is connected to the load (such as a motor).
Control circuit: A1/A2 is connected to a 24V AC control power supply (note polarity).
It is recommended to connect a thermal overload relay in series in the control circuit to achieve complete motor protection.

Product Images

Related Products

ABB AC contactor motor control

efficient ABB contactor spare parts

reliable motor control contactor ABB

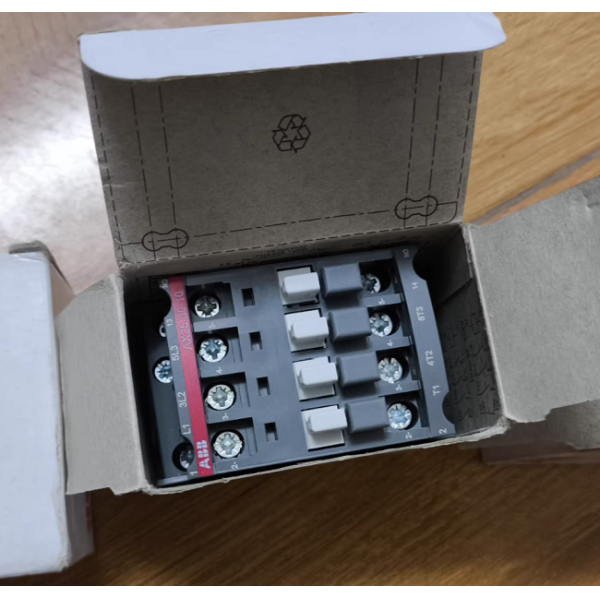

AX25-30-10-81 ABB Ac contactor Efficient reliable motor control solutions Images
