AX12-30-10-85 ABB Ac contactor Compact AC control solution Small and medium sized motors load control

Brand Name : ABB

Model Number : AX12-30-10-85

Certification : COO & COC

Place of Origin : Germany

MOQ : 1 pc

Price : $8

Payment Terms : T/T,paypal,alipay

Supply Ability : 99+

Delivery Time : 3-5 days

Packaging Details : Brand new and original

Shipping Weight : 0.2 KG

Packing Size : 10.2 x 11.1 x 7.2 cm

Condition : Brand new and original

Warranty : One year

Trade Terms : EXW, DAP, FOB, CIF

Express Delivery : DHL, FedEx, UPS

Contact Now

AX12-30-10-85 ABB Ac contactor Compact AC control solution Small and medium sized motors load control

ABB AX12-30-10-85 is a high-performance modular AC contactor belonging to the ABB AX series. It is specially designed for frequent start-stop operations and is suitable for the control of small and medium-sized three-phase asynchronous motors, lighting systems and other AC-3 or AC-1 type loads. This model supports 3-pole main contacts + no auxiliary contacts, with a rated working current of 12A (AC-3 category) and a coil voltage of DC24V (the model suffix "85" indicates a DC24V control coil). It is an ideal choice for low-voltage distribution and control systems.

Basic parameters

Model	AX12-30-10-85
Series	ABB AX series AC contactors
Pole number	3P (main contact), no auxiliary contact
Rated insulation voltage Ui	690 V AC
Rated working voltage Ue	230/400/690 V AC (50/60 Hz)
Rated operating current Ie (AC-3)	12 A @ 400 V AC
Rated operating current Ie (AC-1)	16 A @ 400 V AC
Control coil voltage	24 V DC
Coil power consumption (engagement/holding)	approximately 5W / 1.5W (typical value)

Typical application scenarios

Industrial automation
It is used for the start and stop control of three-phase asynchronous motors in small water pumps, fans, compressors, conveyor belts, etc.
Building automation
It is applicable to central air conditioning systems, elevator control, and management of large lighting circuits.
Energy and infrastructure
Auxiliary control of photovoltaic inverters, pumping stations of water treatment plants, and backup power switching systems.
OEM equipment integration
As a standard component embedded in the OEM control cabinet, it enhances the reliability of the entire machine.

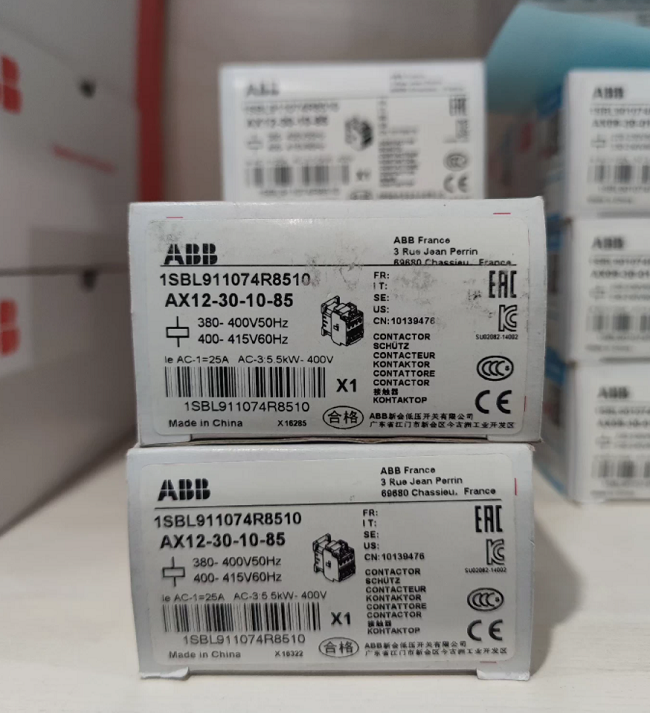

Product Images
